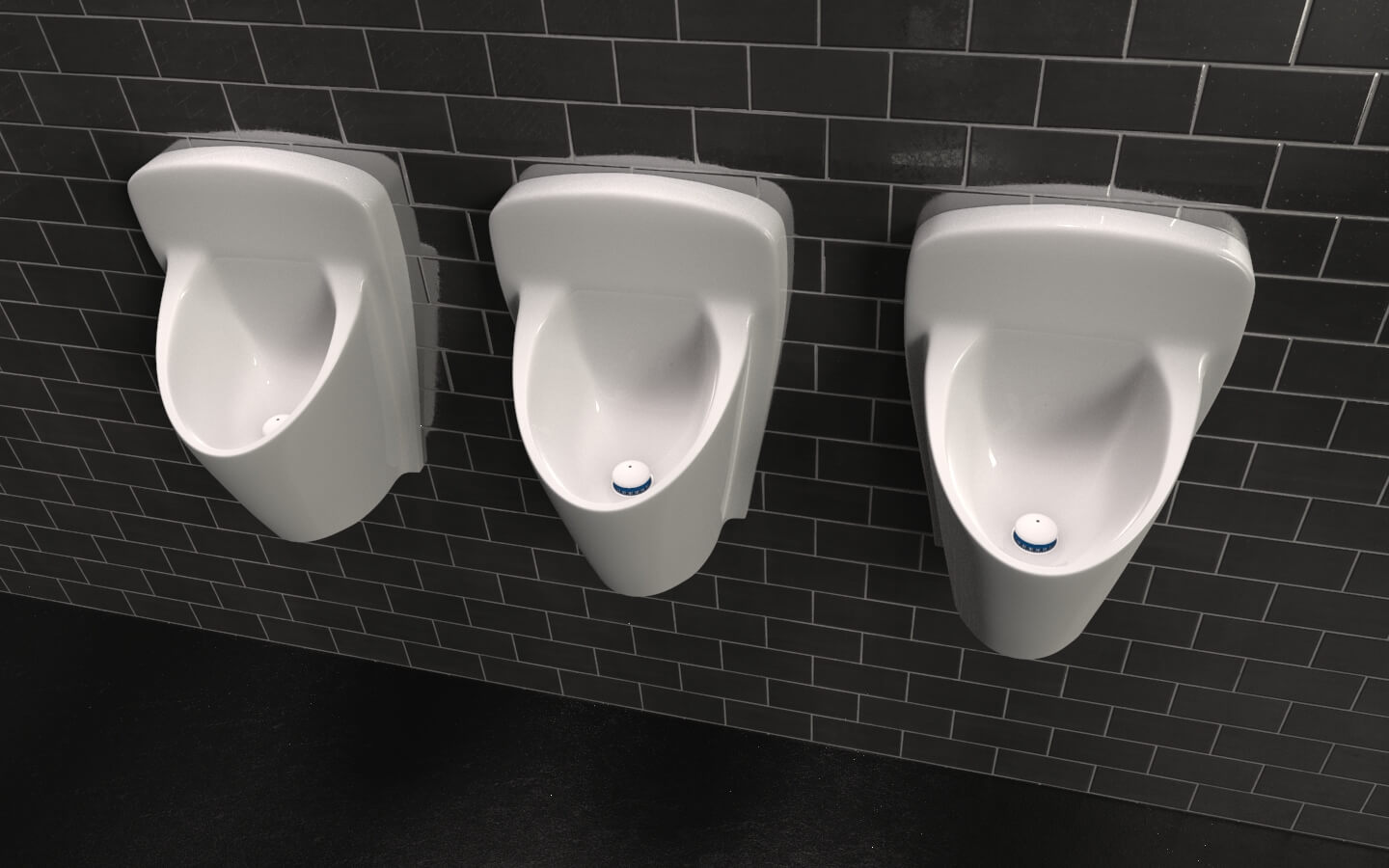

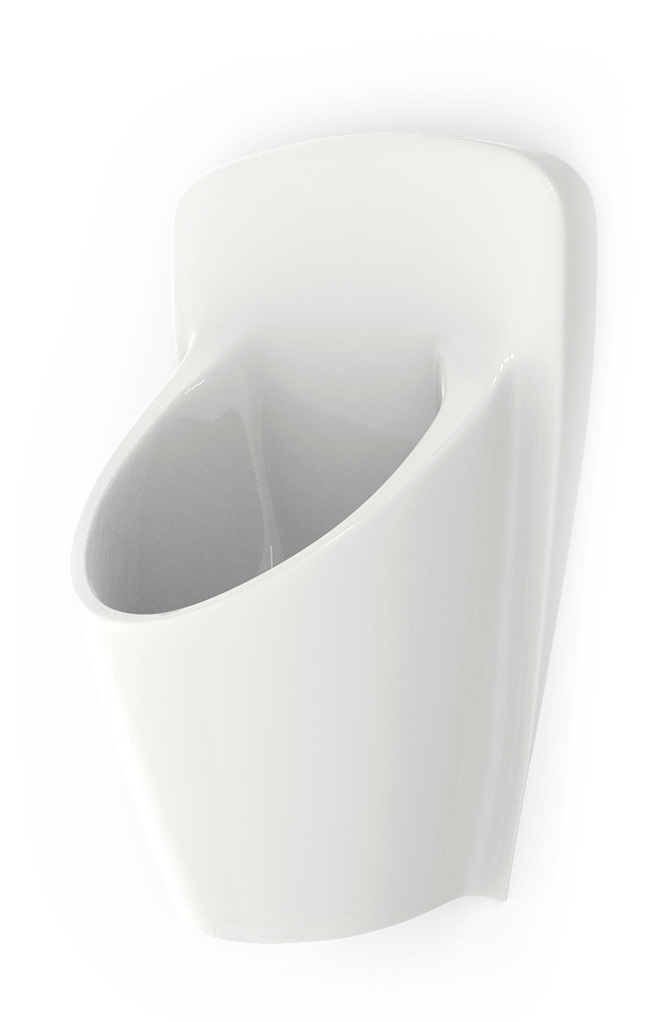

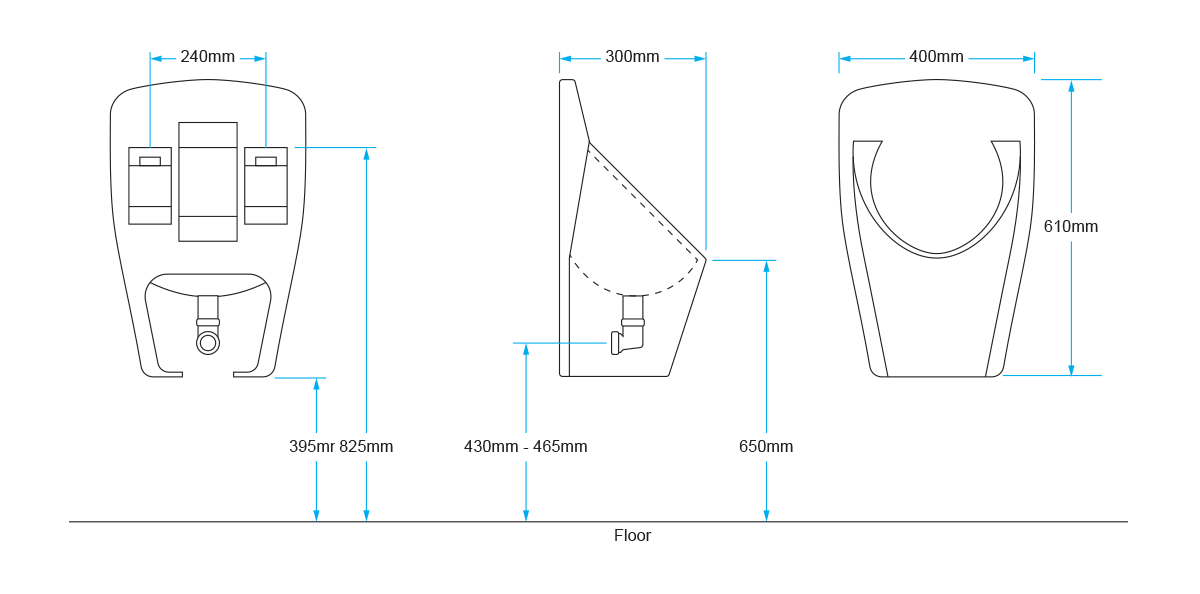

MODEL 1000
| Material: | Vitreous China |
| Dimensions: | 610 x 400 x 220mm |
| Colour: | White |
| Finish: | Silver Nano Glaze |
| Approval: | BREEAM Compliant |
| Applications: | Commercial, Education, Hotels, Security & Other |
| Fixings: | Bowls screwed to wall with brackets |
Note: For use on Installations with open or closed piping below the urinal bowl.

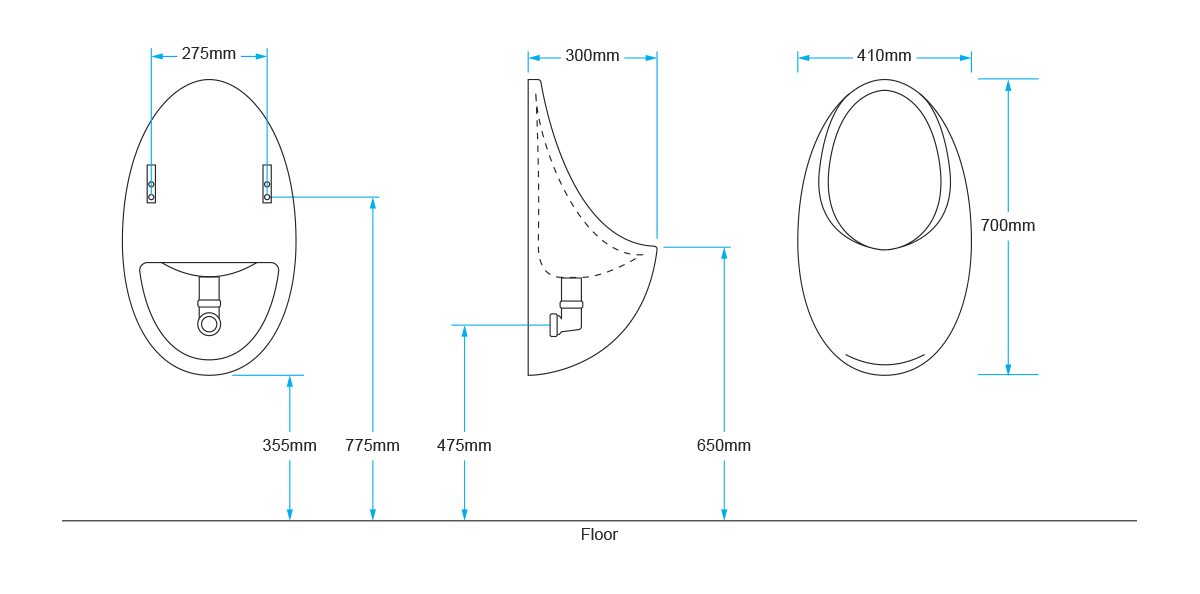

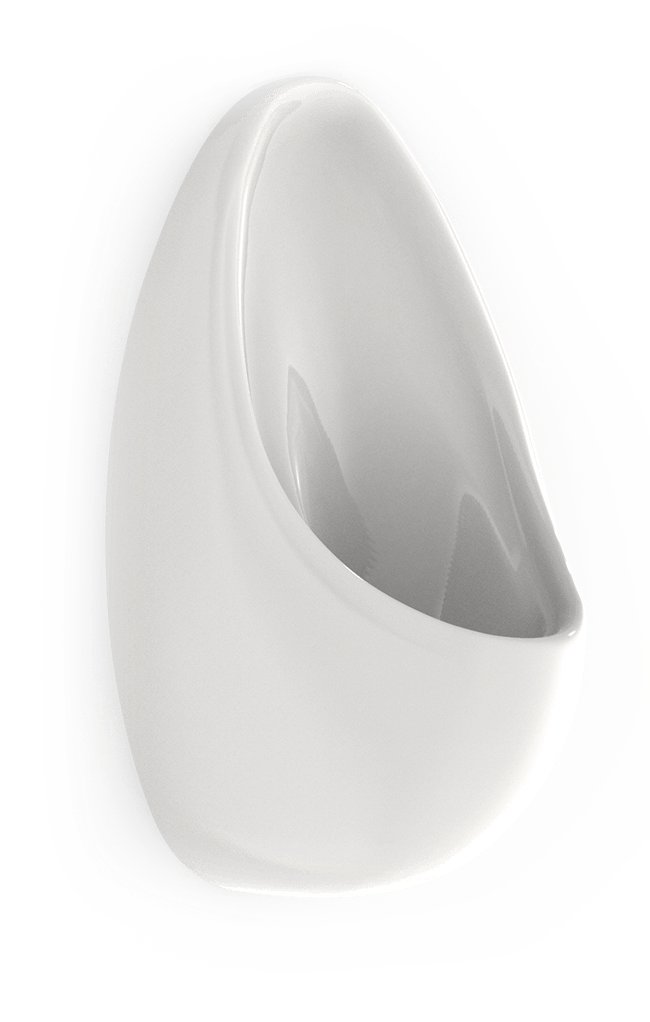

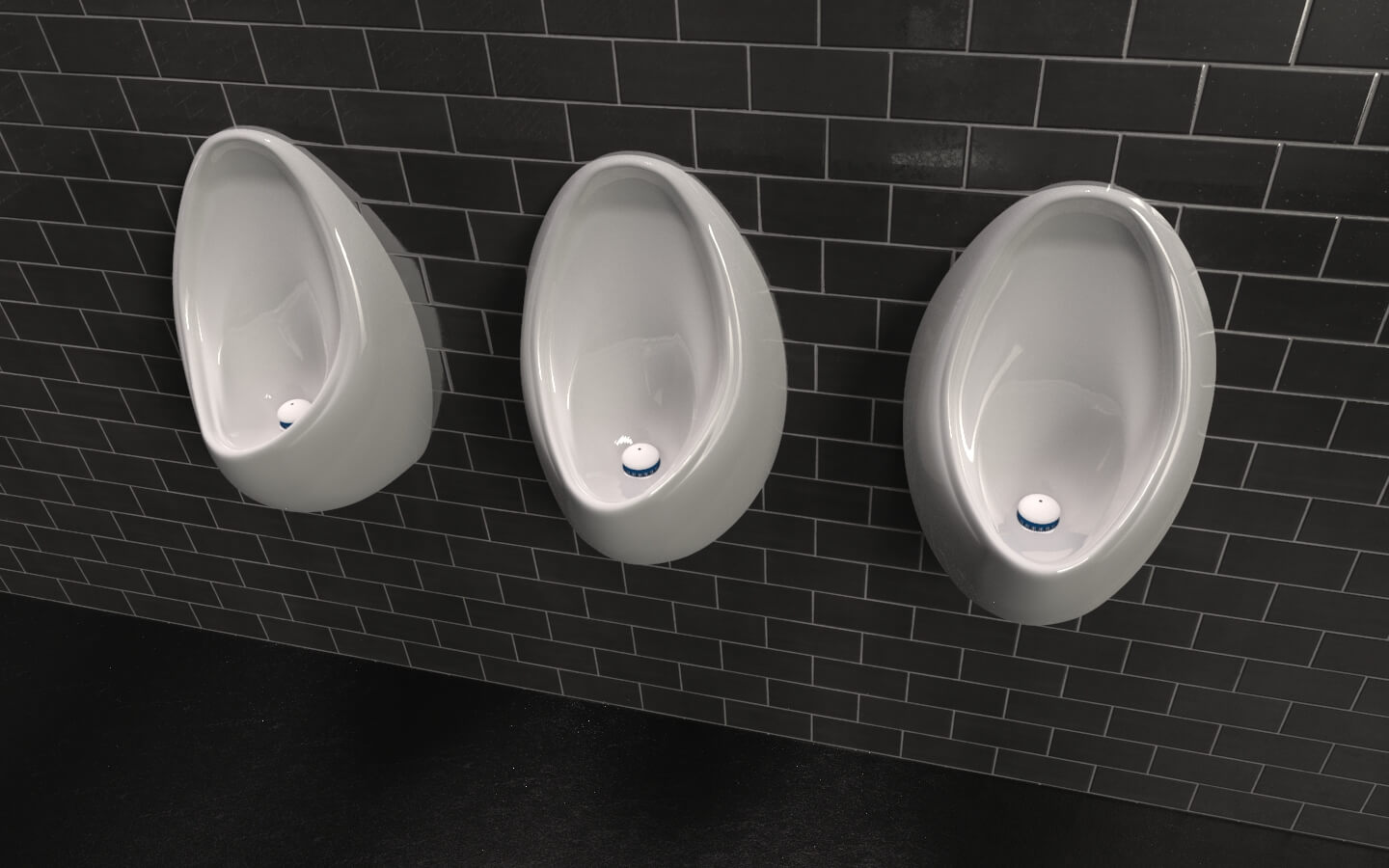

MODEL 2000
| Material: | Vitreous China |
| Dimensions: | 700 x 410 x 300mm |
| Colour: | White |
| Finish: | Silver Nano Glaze |
| Approval: | BREEAM Compliant |
| Applications: | Commercial, Education, Hotels, Security & Other |
| Fixings: | Bowls screwed to wall with brackets |
Note: For use on installations with closed piping behind tiled walls and IPS Panelling

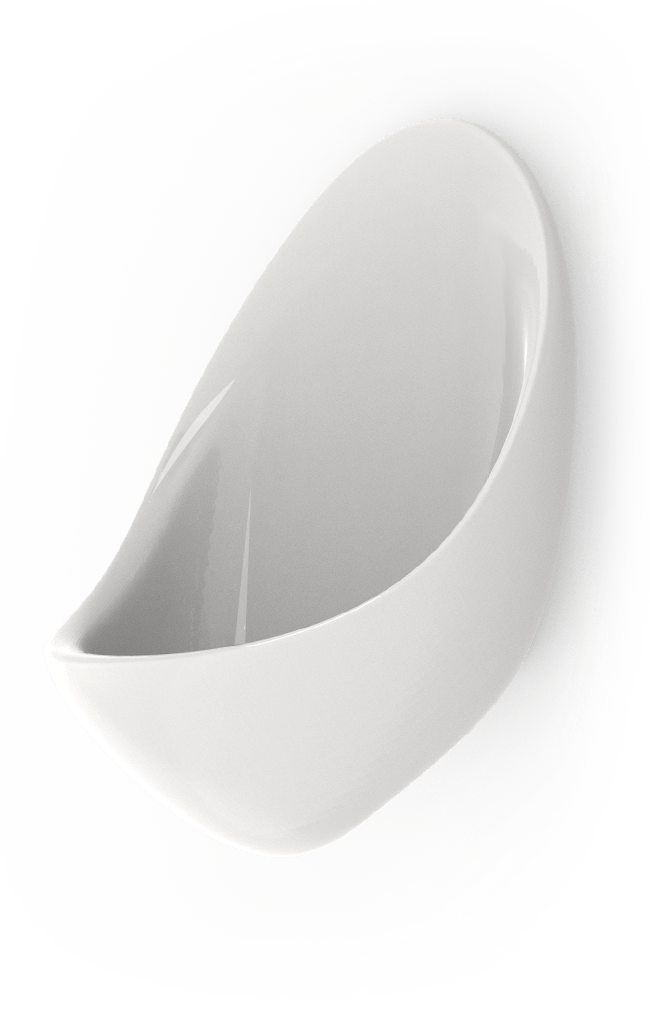

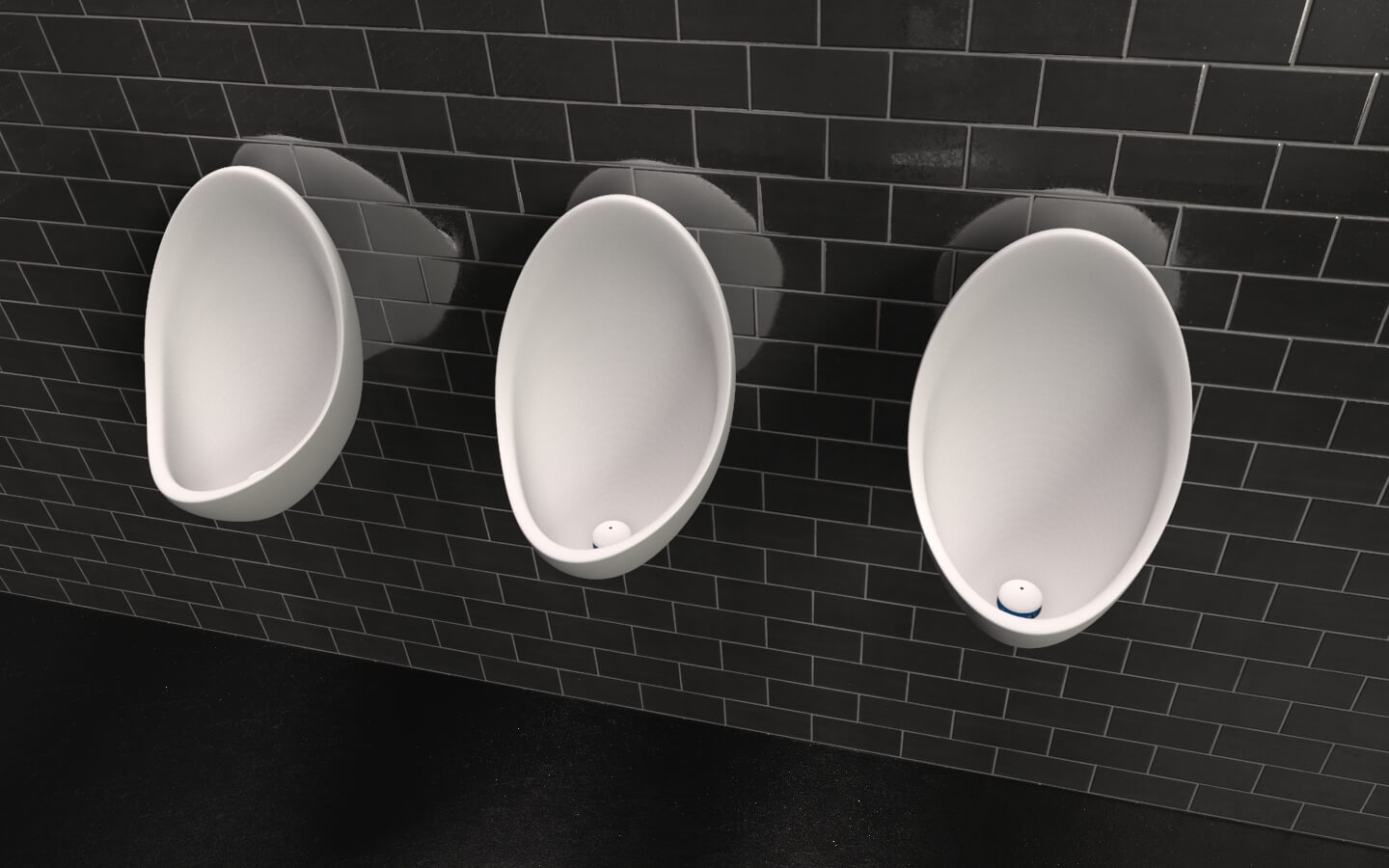

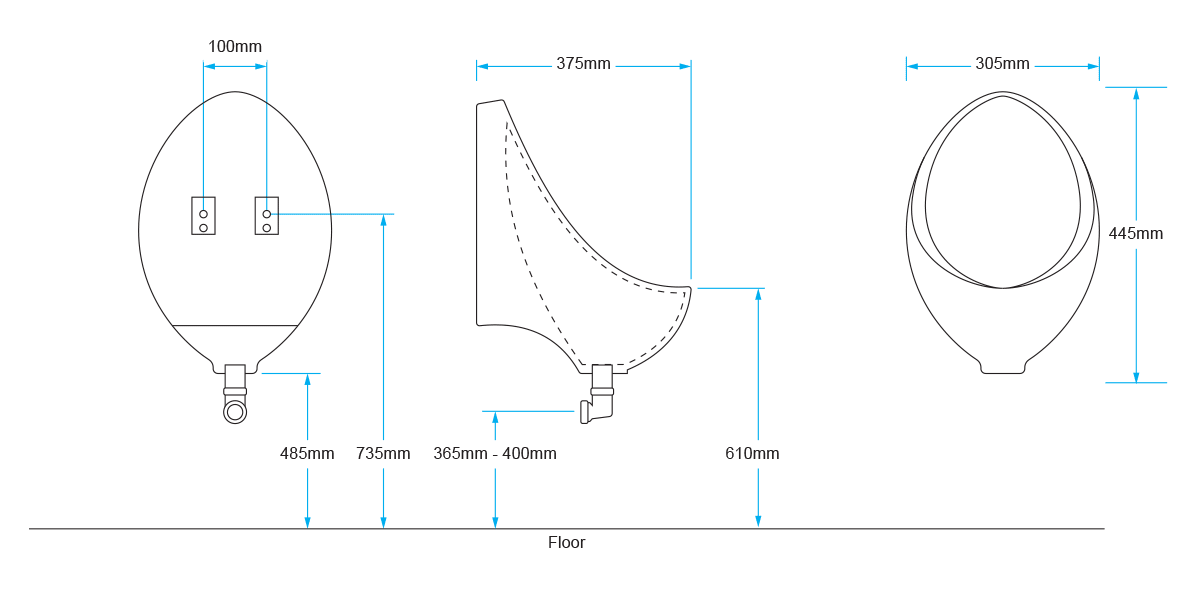

MODEL 3000
| Material: | Vitreous China |
| Dimensions: | 445 x 305 x375mm |
| Colour: | White |
| Finish: | Silver Nano Glaze |
| Approval: | BREEAM Compliant |
| Applications: | Commercial, Education, Hotels, Security & Other |
| Fixings: | Bowls screwed to wall with brackets |
Note: For use on Installations with open piping below the urinal bowls.

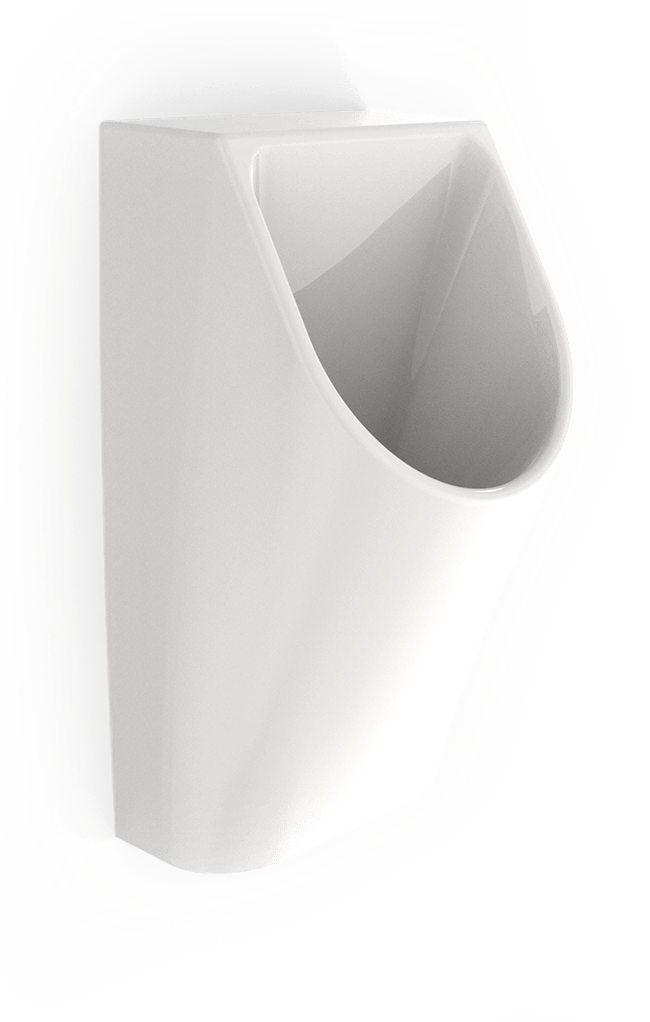

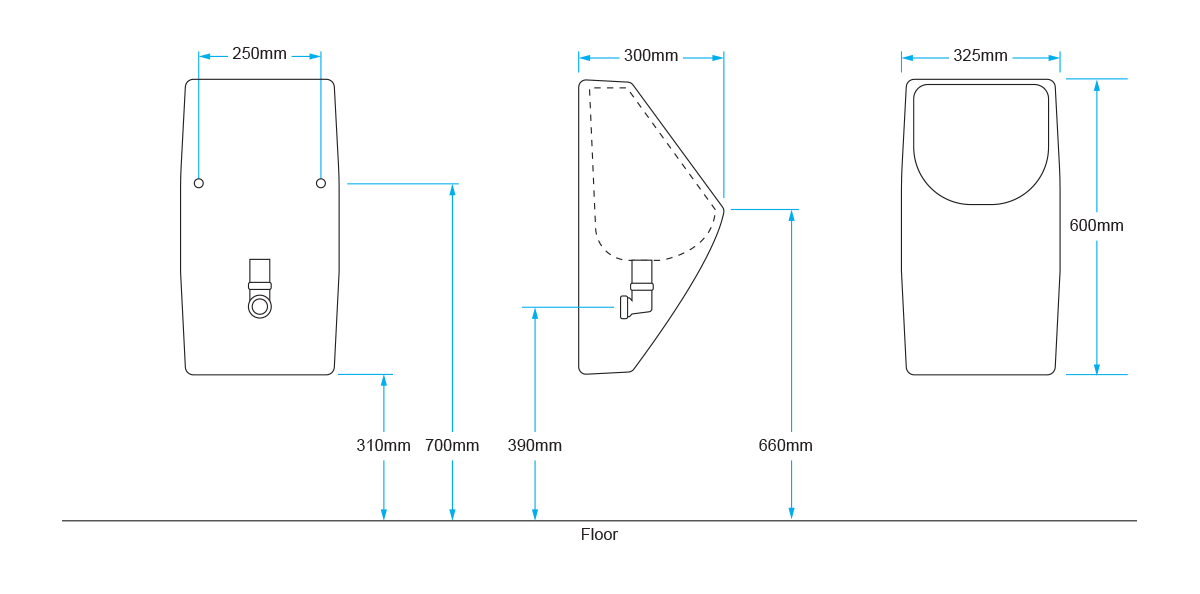

MODEL 4000
| Material: | Vitreous China |
| Dimensions: | 600 x 325 x 300mm |
| Colour: | White |
| Finish: | KeraTect |
| Approval: | BREEAM Compliant |
| Applications: | Commercial, Education, Hotels, Security & Other |
| Fixings: | Bowls screwed to wall with brackets |
Note: For use on Installations with closed piping below the urinal bowls.

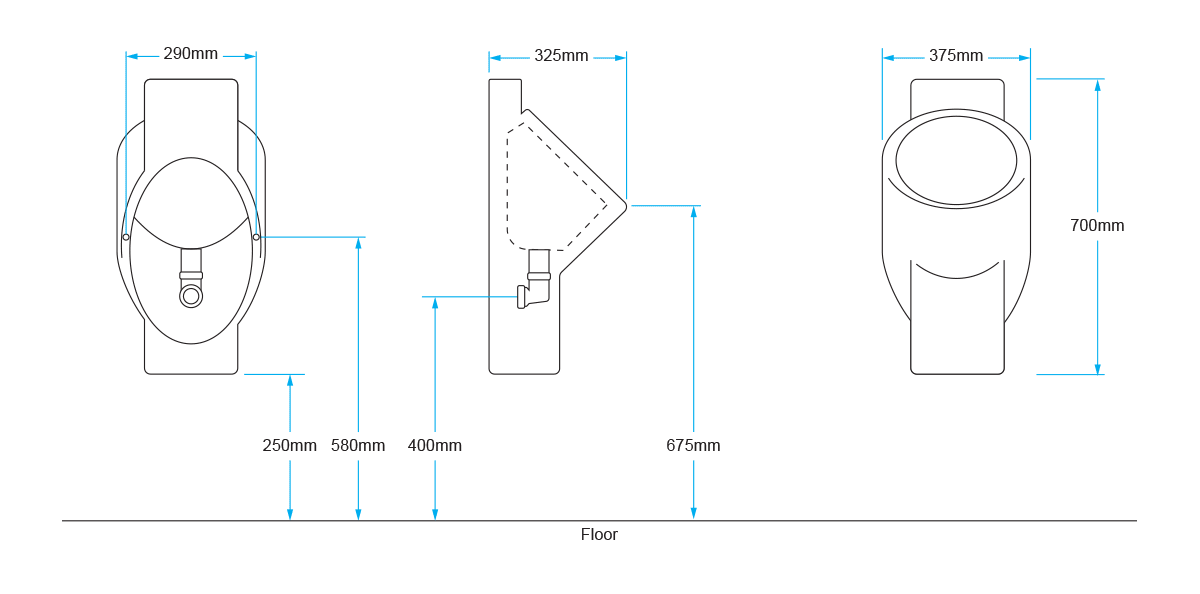

MODEL 5000
| Material: | Vitreous China |
| Dimensions: | 710 x 375 x 325mm |
| Colour: | White |
| Finish: | KeraTect |
| Approval: | BREEAM Compliant |
| Applications: | Commercial, Education, Hotels, Security & Other |
| Fixings: | Bowls screwed to wall with brackets |
Note: For use on Installations with closed piping below the urinal bowls.

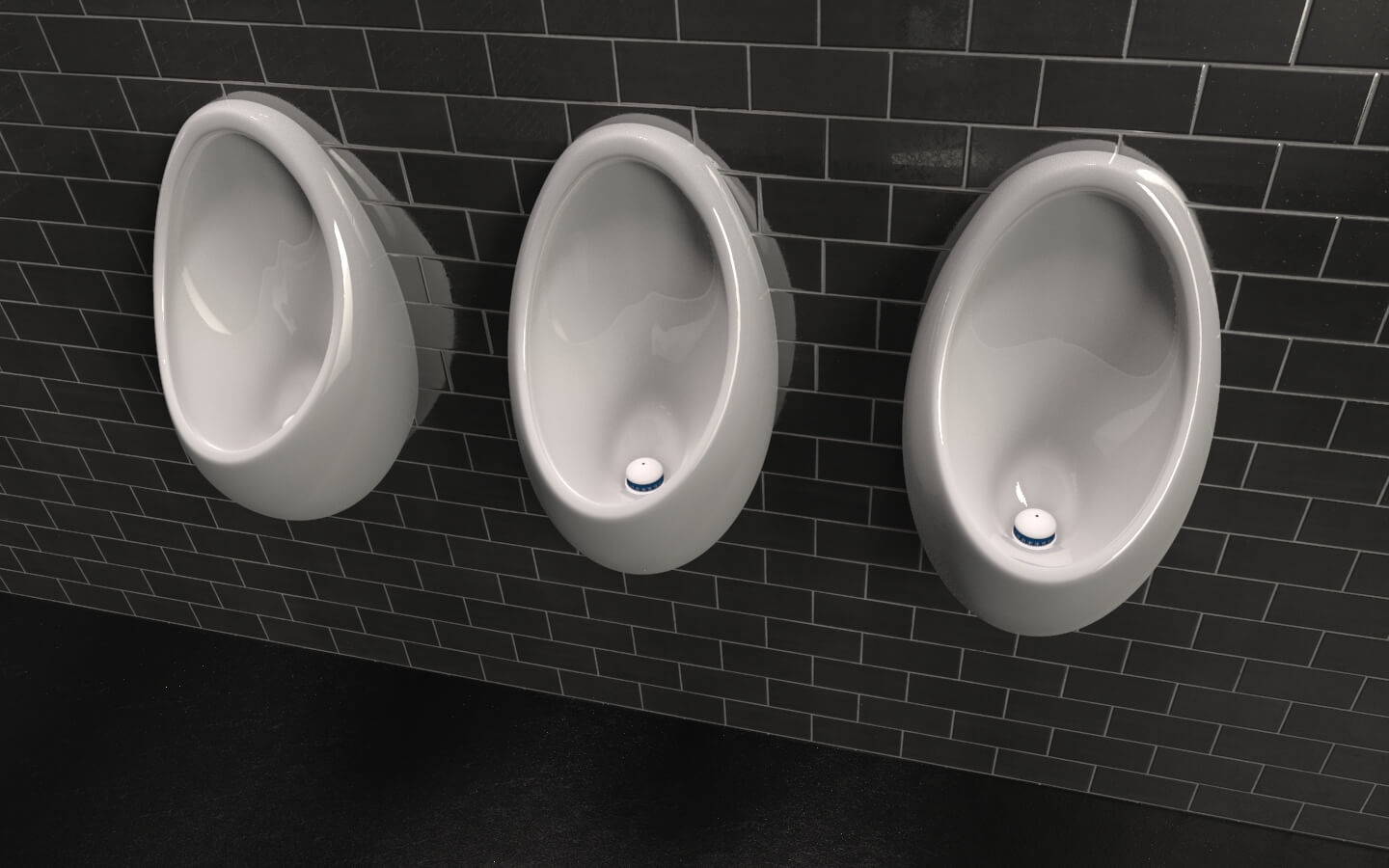

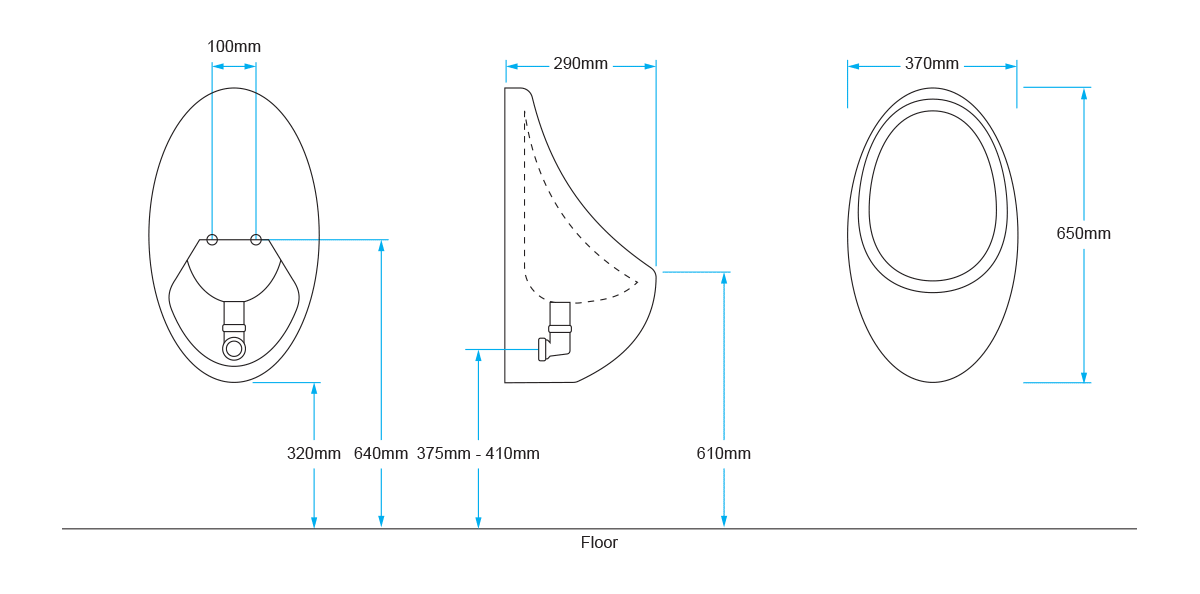

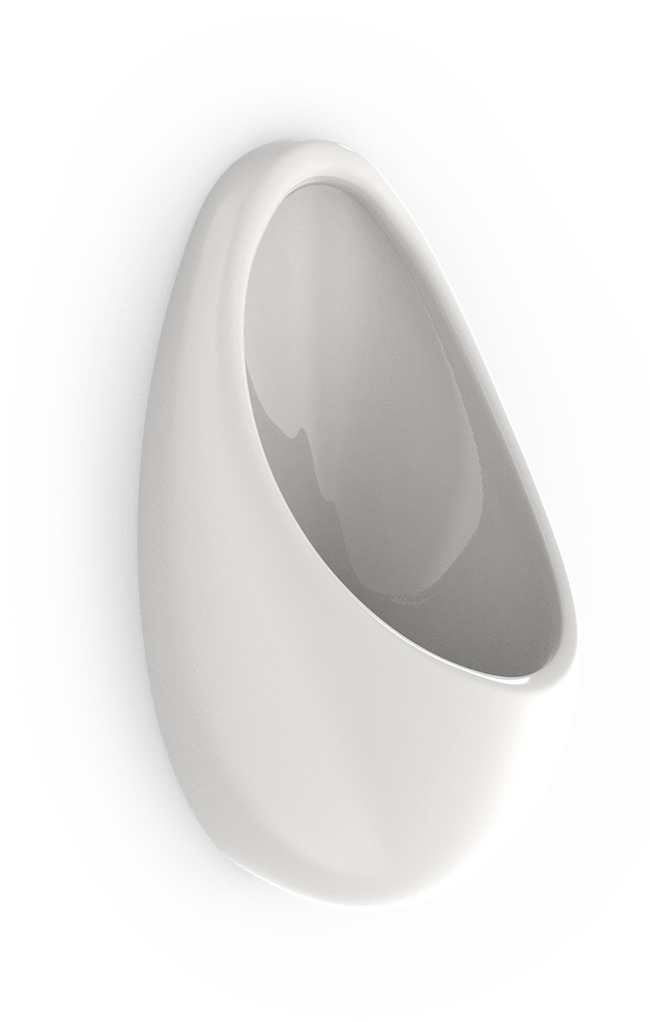

MODEL 6000
| Material: | Vitreous China |
| Dimensions: | 650 x 370 x 290mm |
| Colour: | White |
| Finish: | Silver Nano Glaze |
| Approval: | BREEAM Compliant |
| Applications: | Commercial, Education, Hotels, Security & Other |
| Fixings: | Bowls screwed to wall with brackets |
Note: For use on Installations with closed piping below the urinal bowls.

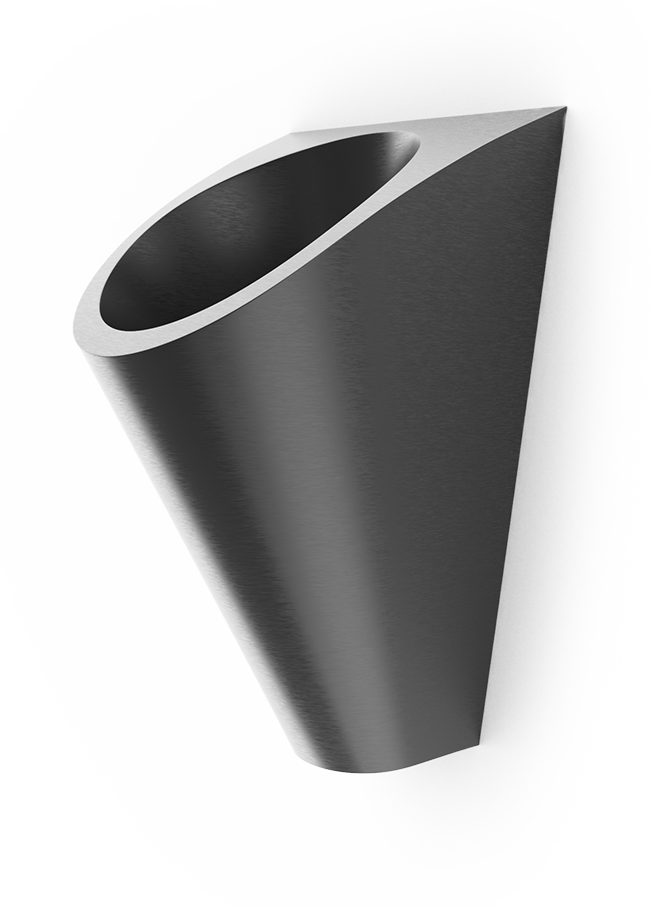

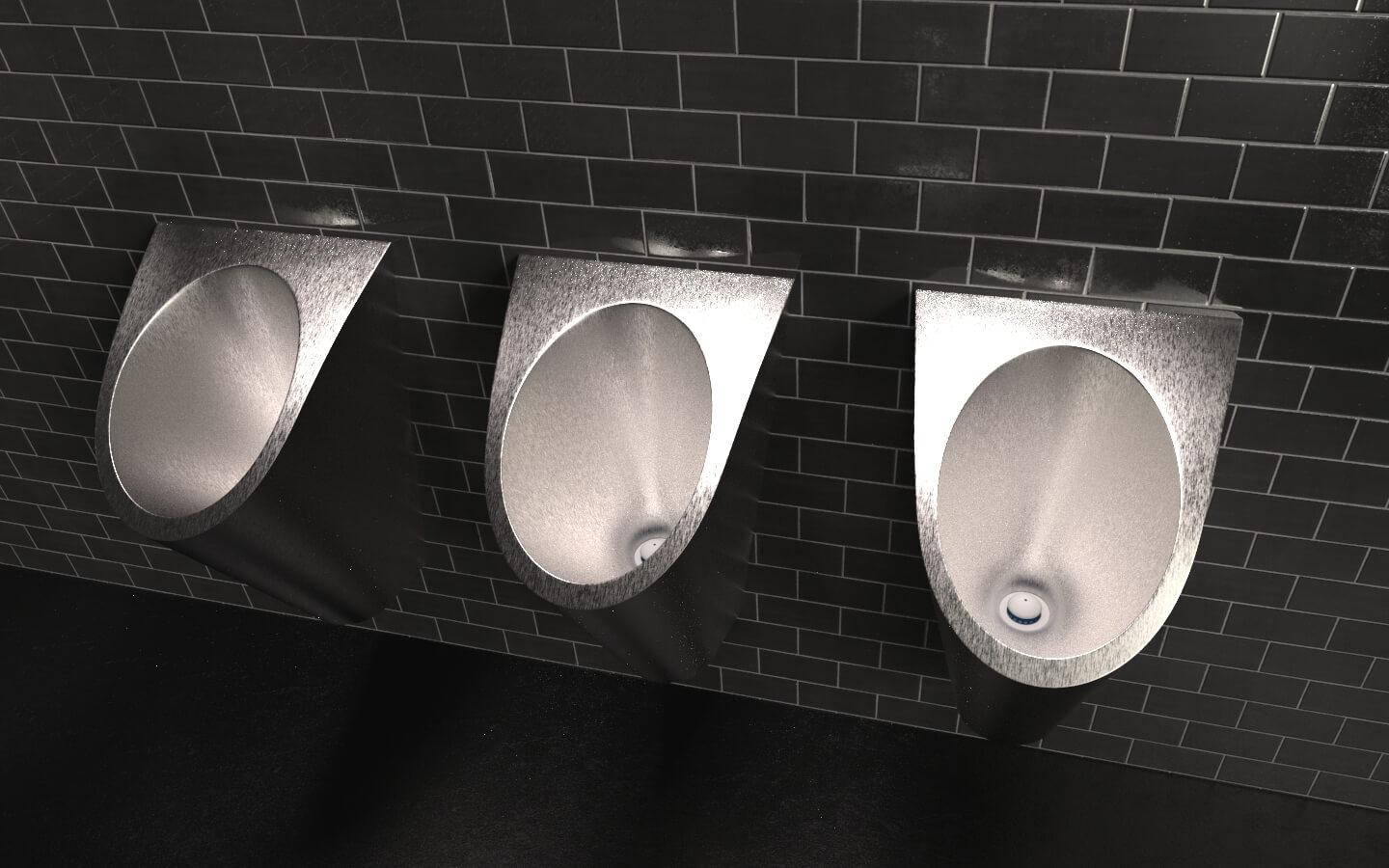

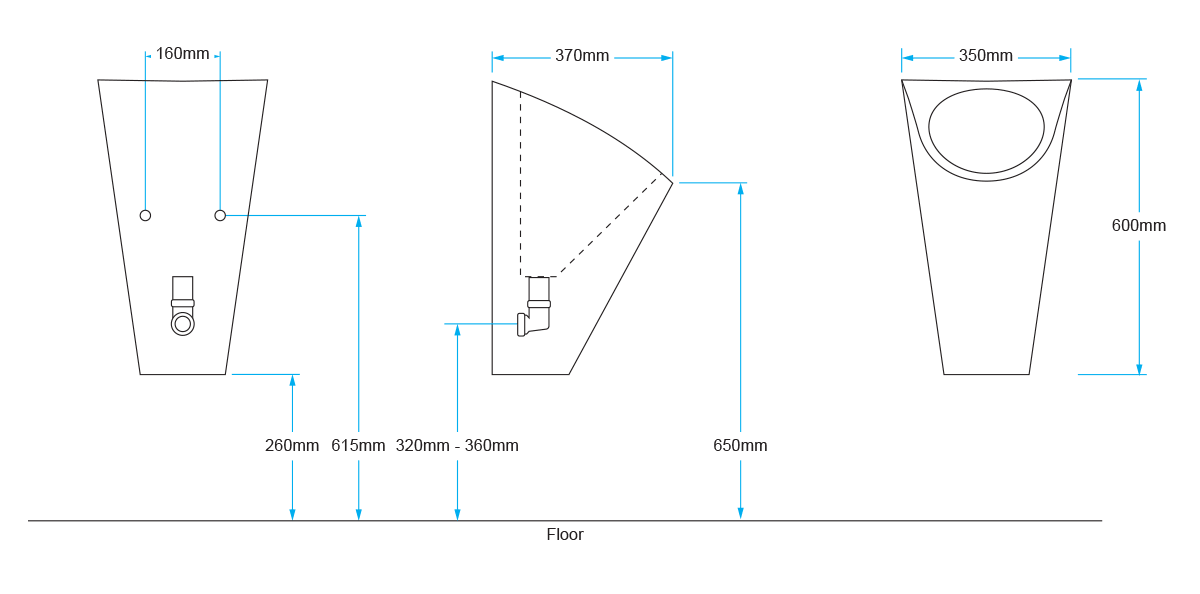

MODEL 7000
| Material: | Stainless Steel |
| Dimensions: | 600 x 350 x 370mm |
| Colour: | Silver Grey |
| Finish: | Brushed |
| Approval: | BREEAM Compliant |
| Applications: | Commercial, Education, Hotels, Security & Other |
| Fixings: | Bowls screwed to wall with brackets |
Note: For use on Installations with closed piping below the urinal bowls.

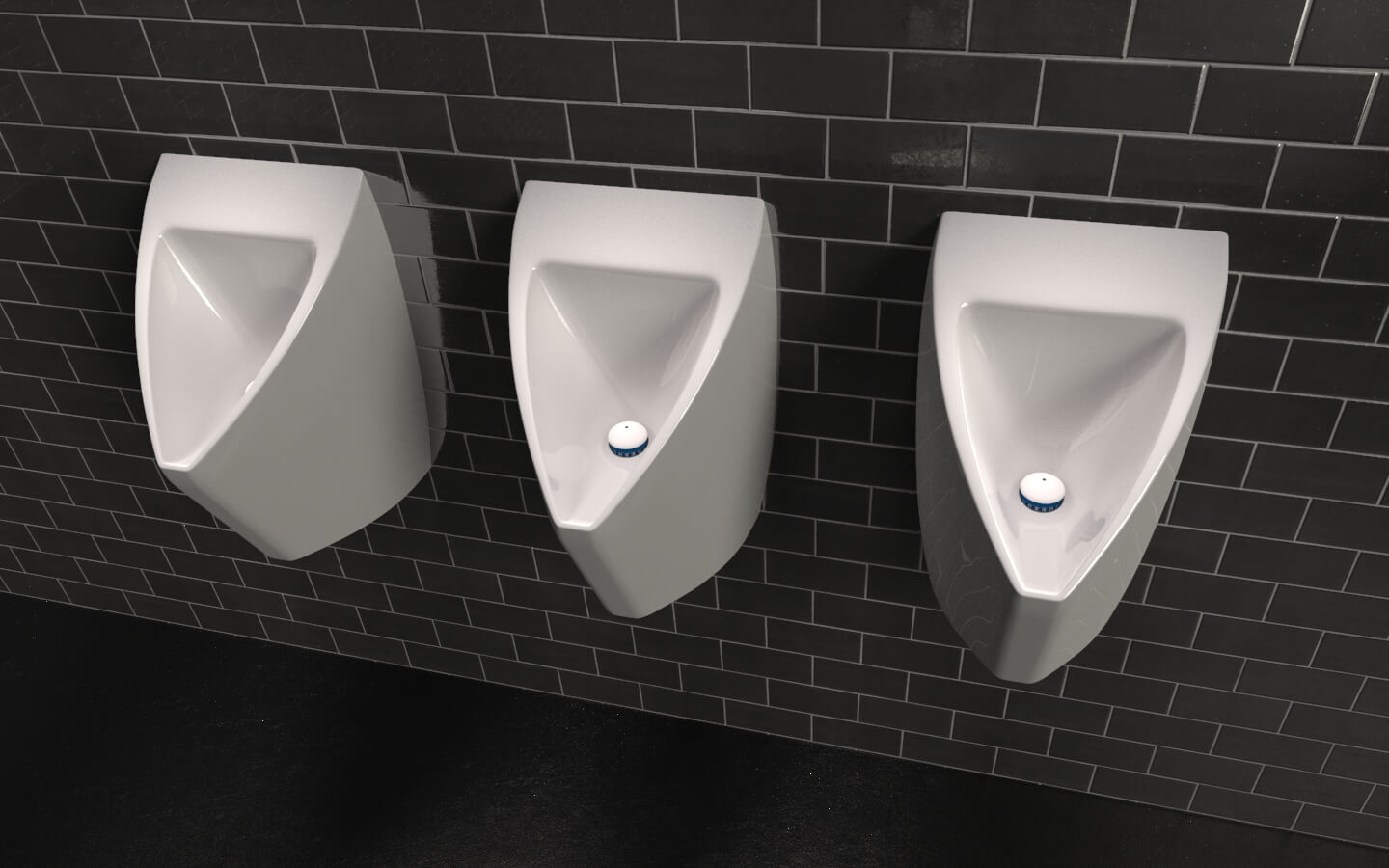

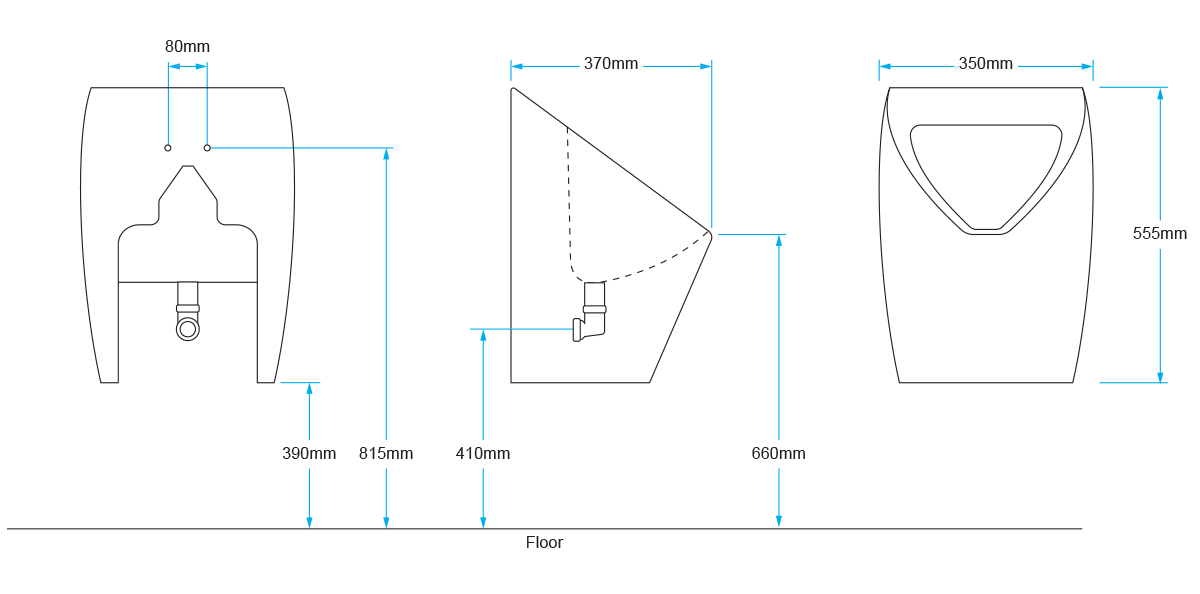

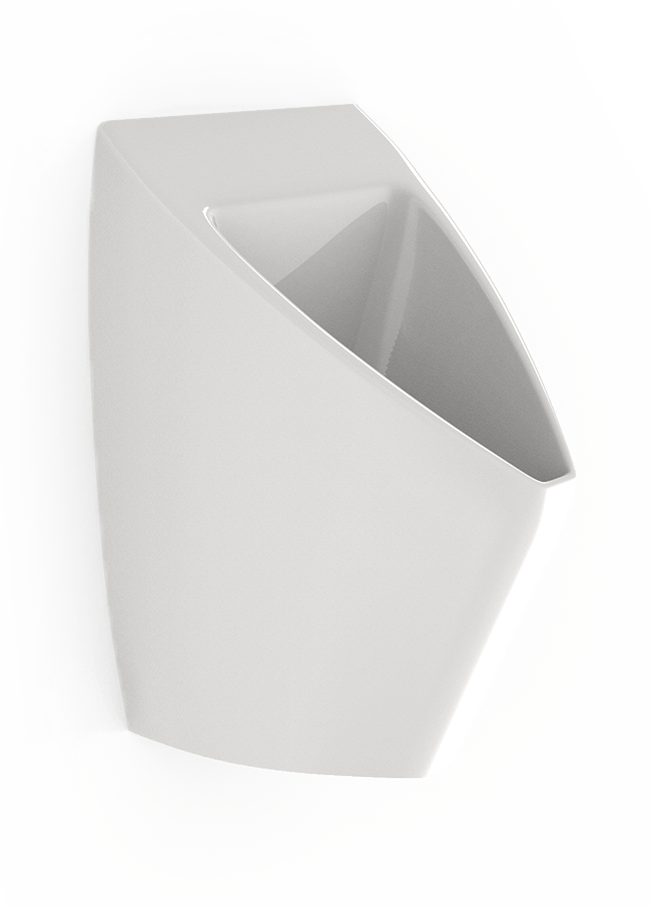

MODEL 8000
| Material: | Vitreous China |
| Dimensions: | 555 x 350 x 370mm |
| Colour: | White |
| Finish: | Silver Nano Glaze |
| Approval: | BREEAM Compliant |
| Applications: | Commercial, Education, Hotels, Security & Other |
| Fixings: | Bowls screwed to wall with brackets |
Note: For use on Installations with closed piping below the urinal bowls.

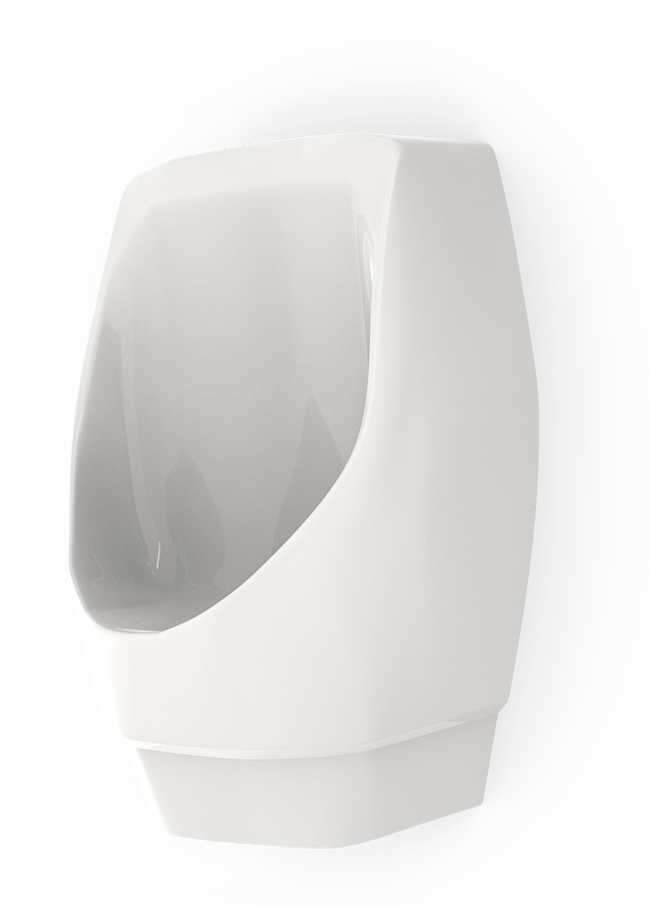

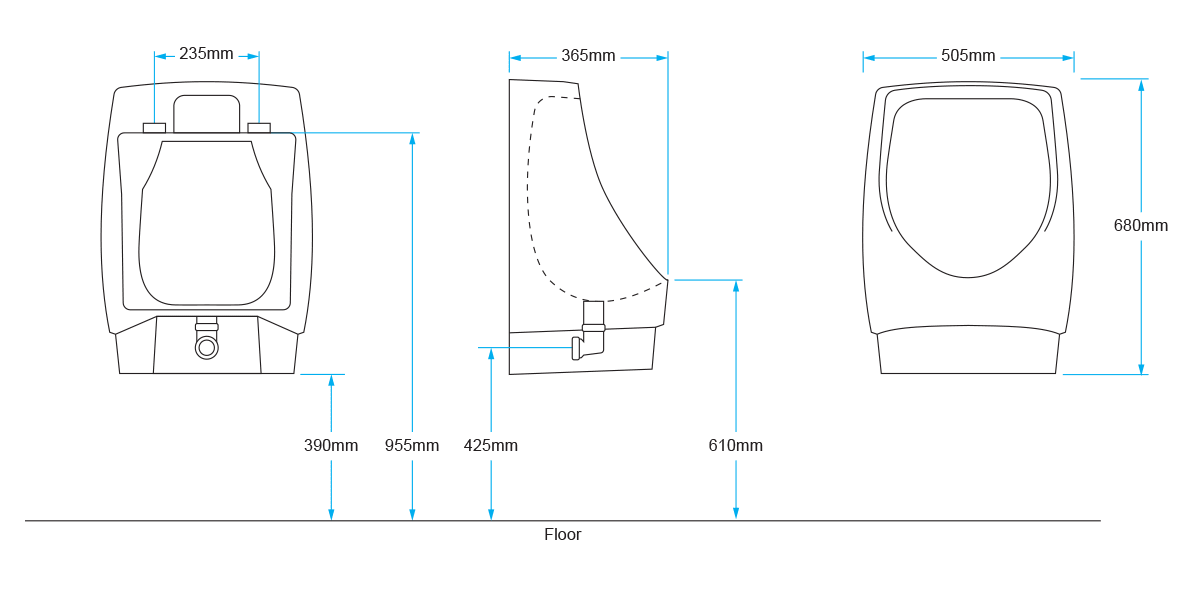

MODEL 9000
| Material: | Vitreous China |
| Dimensions: | 680 x 505 x 365mm |
| Colour: | White |
| Finish: | Silver Nano Glaze |
| Approval: | BREEAM Compliant |
| Applications: | Commercial, Education, Hotels, Security & Other |
| Fixings: | Bowls screwed to wall with brackets |
Note: For use on Installations with open or closed piping below the urinal bowl.
